From Speed to Precision Hwashi Seven Axis Double Heads Transform Door Frame Welding

  • 1
  • 2
  • 3

Brand Name : hwashi

Model Number : WL-SQ100K

Certification : CE/CCC/ISO

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 50 sets per month

Delivery Time : 60 working days after received your payment

Packaging Details : sea worthy wooden package

Model : WL-SQ100K

Conductive Way : Both-Sided

Rated Capacity : 160kVA X2

Applicable Material : Stainless Steel, Carbon steel, Aluminum, Metal

Welding Method : Resistance Touch Welding

Max.Welding Thickness : 2+2mm

Warranty : 1 years

Contact Now

From Speed to Precision Hwashi Seven Axis Double Heads Transform Door Frame Welding


From Speed to Precision Hwashi Seven Axis Double Heads Transform Door Frame Welding

Product Description

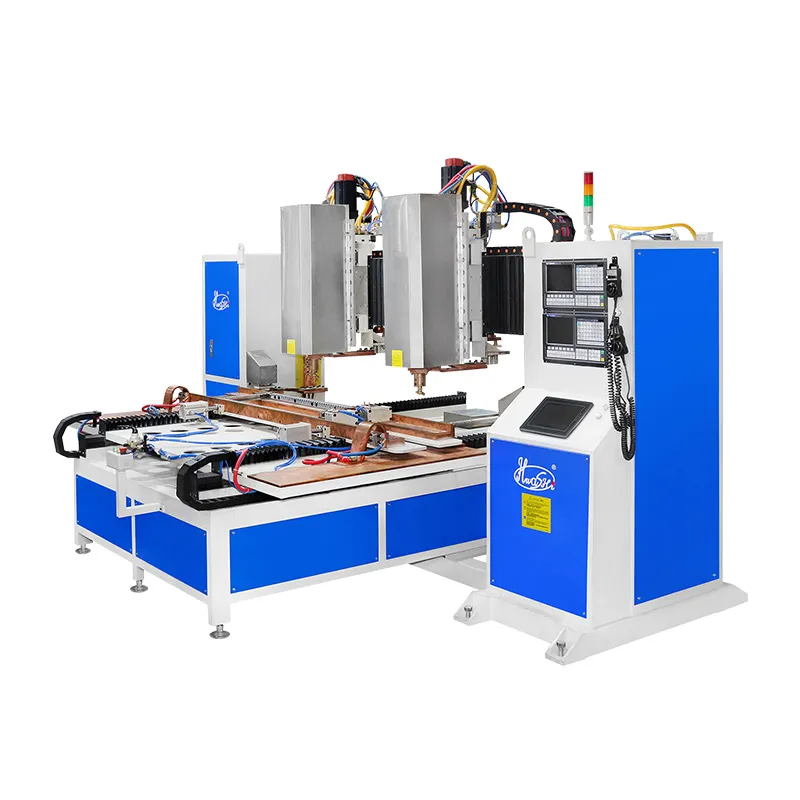

CNC 7 Axi Double Head Automatic Spot Welding Machine adopts two sets of welding mechanism with CNC servo system, including X direction for the welding movement , Y direction for the table movement, through the XY direction to achieve welding of different positions. Welding mechanism can also operate Z direction lifting and A direction rotation, with CNC system to control seven axis to achieve the movement of different positions for the welding mechanism.

This machine adopts medium frequency inverter DC welding power. The equipment can realize the automatic welding production of Door Tube Frame or the reinforment panel or stiffeners to steel door. It can automatically move and weld according to the position set by the program, and the operator only needs to manually load and unload the product. The equipment improves the product quality and production efficiency, reduces the production cost, solves the defects such as the unstable quality of manual work and low production efficiency, with higher the production efficiency and automation degree.
From Speed to Precision Hwashi Seven Axis Double Heads Transform Door Frame Welding

Unparalleled Efficiency with Double - Head Design​

  Simultaneous Welding Operations​

  • The double - head configuration of this spot welding machine allows for two - point welding simultaneously. This significantly reduces the cycle time compared to single - head spot welders. For door tube frame production, where multiple welds are required at different points on the frame, the double - head design enables a substantial increase in output. For example, in a typical production line where a single - head welder might take 10 seconds to complete a set of welds, the Hwashi double - head machine can achieve the same in just 5 seconds, effectively doubling the production rate.​

 Enhanced Productivity in High - Volume Production​

  • In large - scale door manufacturing plants, time is of the essence. The Hwashi CNC spot welding machine is engineered to handle high - volume production with ease. Its ability to perform rapid and accurate spot welds at a faster pace means that more door tube frames can be produced within a given time frame. This not only boosts overall productivity but also helps manufacturers meet tight deadlines and fulfill large orders efficiently.
Item
Parameter
Rated Power
120KVA*2
Duty Cycle
50%
Effective welding length
1200mm (Customized)
Effective welding width
2200mm (Customized)
Welding Driving Power
Servo System
Max. Moving Speed
500mm/s
Machine Dimension
L3800mm*W2600mm
Rated Air Pressure
0.6MPa
Water Temperature
10-25ºC
