Hwashi Swinq BaseWire Frame Welding Machine Iron Wire Row Welding Machine

Name: Hwashi Swinq BaseWire Frame Welding Machine Iron Wire Row Welding Machine
Brand: Hwashi
Price: 10000 USD

Buy cheap Hwashi Swinq BaseWire Frame Welding Machine Iron Wire Row Welding Machine product

Brand Name : Hwashi

Model Number : WL-SQ-250K

Certification : CE

Place of Origin : China

MOQ : 1

Price : $10000-$50000

Payment Terms : T/T, L/C

Supply Ability : 10 sets/month

Delivery Time : 30-60 days

Packaging Details : wooden box

Mesh Size : 50-200mm

Welding Speed : High Speed

Operation Mode : Automatic/Manual

Mesh Shape : Wire Basket，basket Mesh

Wire Diameter : 0.2-2.5mm（According To Power）

Control System : PLC Control

Power Capacity : High Capacity

Product Name : Wire Basket Mesh Welding Machine

Contact Now

Hwashi Swinq BaseWire Frame Welding Machine Iron Wire Row Welding Machine

Product Description According to the specification provided by our customer, we adopt the design of single-electrode X, Y axis automatic mobile type welding machine which can be matched with different welding fixtures. The operator only needs to input the parameters like the coordinate data and welding current, then the machine will conduct automatic welding after start. Workers only need to put and take the work piece manually. This machine is of simple structure which will make the assembly very easy. It also can be matched with different welding equipment. The servo motor will drive the X and Y axis to run within the preset PLC programming. It can max store 5000 welding spots. This machine is suitable for batch welding of Sheet Metal.

Features

The Welding spots are good in looking, firm, and stable and reliable. Well consistency of welding spots. Wide application. The machine, electricity and other mechanism could be reasonably assembled. It could be used to weld other similar products after relevant modification of microcomputer data program. One machine could serve several purposes. Design Working Life: 8-10 years

Functions Options Wide application. The machine, electricity and other mechanism could be reasonably assembled. It could be used to weld other similar products after relevant modification of microcomputer data program. One machine could serve several purposes.

Items	Data
Cable Requirent	Three-phase 380V/50mm²/160A
Rated Capacity	100KVA*2
Duty Cycle Rate	50
Frequency	1000HZ
Control Heat Adjusting Range	15%99%
Max. Output Voltage	DC7.8V
Secondary Max. Short Circuit Current	20KA
Program Section Time Adjusting Range	0999ms
Welding Schedule	32 types

Features:

Product Name: Refrigerator Wire Tube Condenser Production Line Machine, Welding and Bending Machine
Weight: 500-1000KG
Welding Accuracy: High Accuracy
Welding Speed: High Speed
Wire Diameter: 0.2-2.5mm (According To Power)

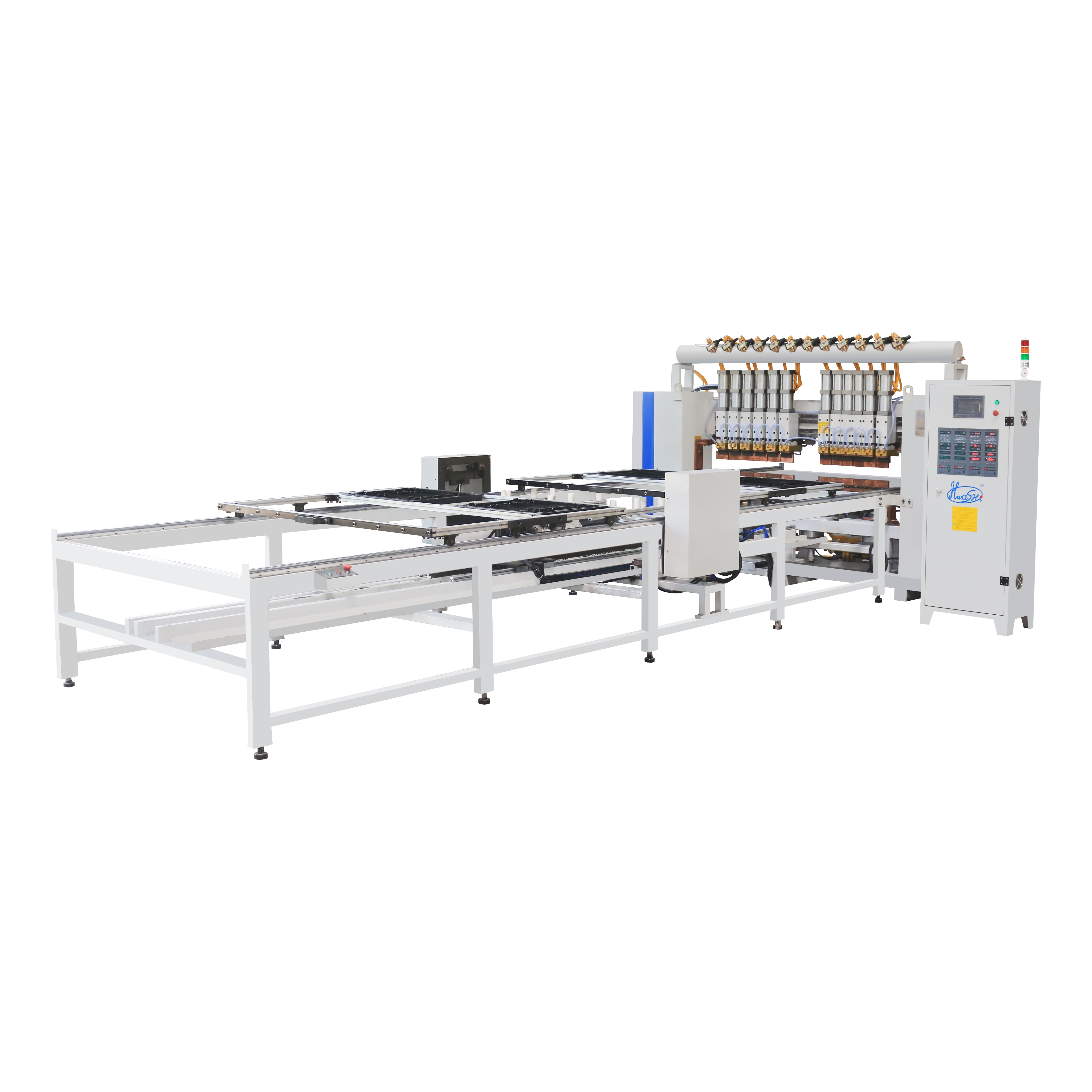

Hwashi Swinq BaseWire Frame Welding Machine Iron Wire Row Welding Machine Images
