Twelve Head Semi Automatic Mesh Wire Welding Machine with Automatic Ejection System

Name: Twelve Head Semi Automatic Mesh Wire Welding Machine with Automatic Ejection System
Brand: HWASHI
Price: 1 USD

Brand Name : HWASHI

Model Number : WL-SQ-150Kx4

Certification : CE/CCC/ISO

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 50 sets per month

Delivery Time : 7-30 working days after received your payment

Packaging Details : sea worthy wooden package

Product Name : Twelve-Head Multipoint Semi-Automatic Wire Mesh Welding Machine

Application : Welding of Wire mesh

Size : 2800x1380x1850mm

Weight : 2000kg

Condition : New

Warranty : 12 months

Standard : CE/CCC/ISO

Service Life : 8-10 years

Contact Now

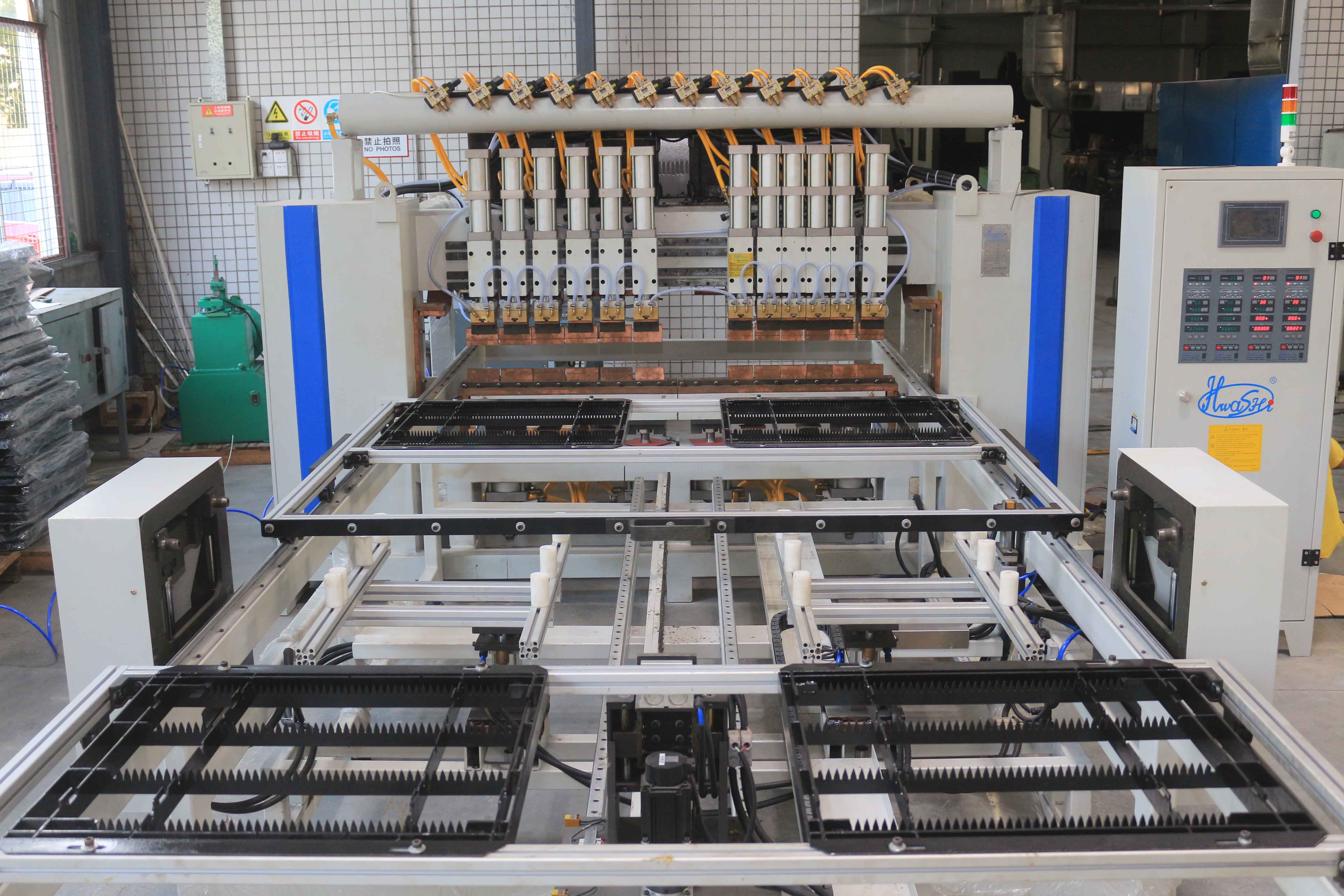

Twelve-Head Multipoint Semi-Automatic Wire Mesh Welding Machine with Automatic Ejection System

DESCRIPTION

The effective welding size 800mmx800mm wire diameter: Ø3-8mm, 2 pcs welding at one time,

including:

1. Main body-1 set

2. AC power source-4 sets

3. One side double-layer automatic feeder

4. fixtures-2 sets

5. Automatic ejection system

6. 3HP Water Chiller

SPECIFICATION

Model	WL-SQ-150K×4
Input Voltage	two-phase 380 V
Input Current	400 A
Output Voltage	12V
Max Short Circuit Current	45000 A
Welding Effective Width	800mm ( customized)
Welding Effective Length	800mm ( customized)
Feeder Moving Speed	500 mm/sec
Upper Welding Cylinder	￠ 100 x 100 mm
Lower Welding Cylinder	￠ 160 x 100 mm

Twelve Head Semi Automatic Mesh Wire Welding Machine with Automatic Ejection System

Product Tags:

wire welders

wire welding equipment

Buy cheap Twelve Head Semi Automatic Mesh Wire Welding Machine with Automatic Ejection System product

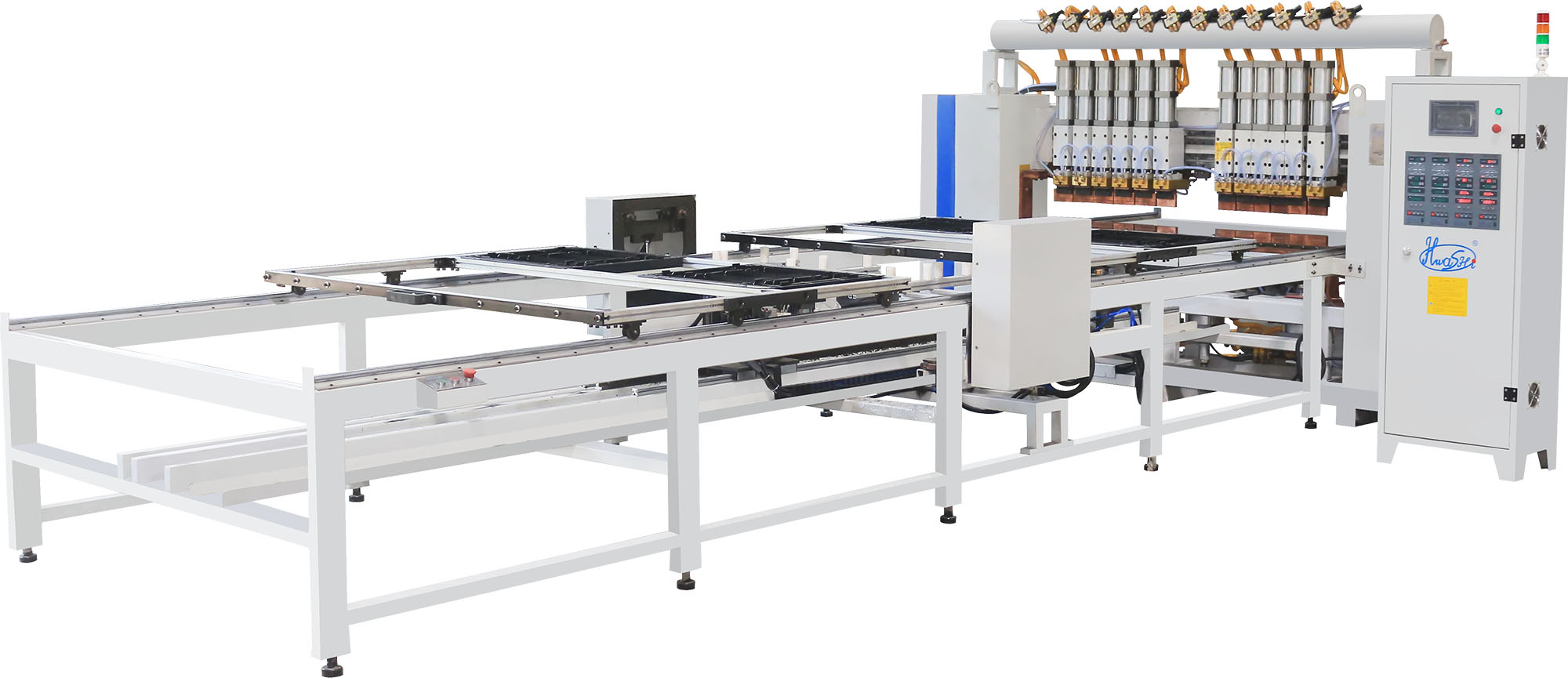

Twelve Head Semi Automatic Mesh Wire Welding Machine with Automatic Ejection System Images
