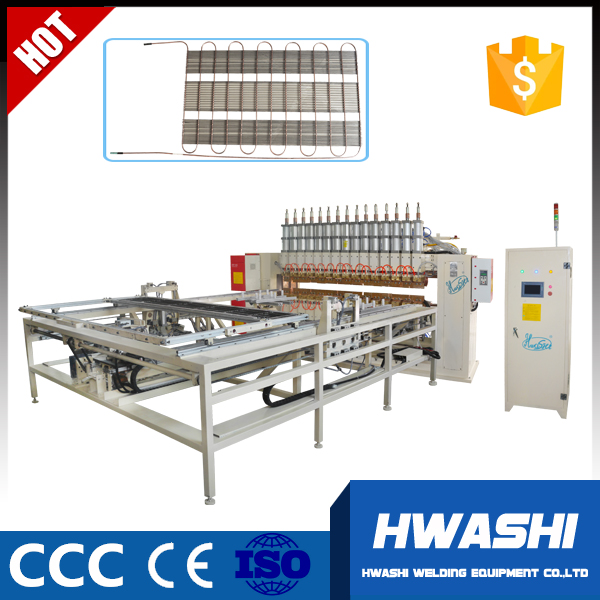

Automatic Wire Welding Machine , Wire And Bundy Tube Condenser Welding Production Machine
DESCRIPTION
This condenser welding special machine is customized for welding Wire And Bundy Tube condenser with automatic wire feeding system, automatic mobile system, automatic welding system, and cooling system.
SPECIFICATION
| Model | WL-SQ-MF160KX2 |
| Input Power | Three-phase four-wire 440V±10%50HZ |
| Primary Current | 120A |
| Rated Duty-cycle | 50% |
| Adjustable Steps of Secondary Voltage | 2 Steps |
| Maximum Secondary Floating Voltage | 7.5V |
| Maximum Secondary Short-circuit Current | 26KA |
| Effective Welding Length | 1300mm |
| Effective Welding Width | 950mm |
| Upper Electrode Stroke | 80mm |
| Lower Electrode Adjustable Stroke | 30mm |
| Size of Row Welding | 20x80mm |
| Feeding Rack Moving Speed | 300mm/sec |
| Max Length of Automatic Wire Feeding | 1000mm |
APPLICATION
Applicable to welding wire tube condenser, wire mesh,etc.
COMPETITIVE ADVANTAGE
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
Product Tags:
|
|

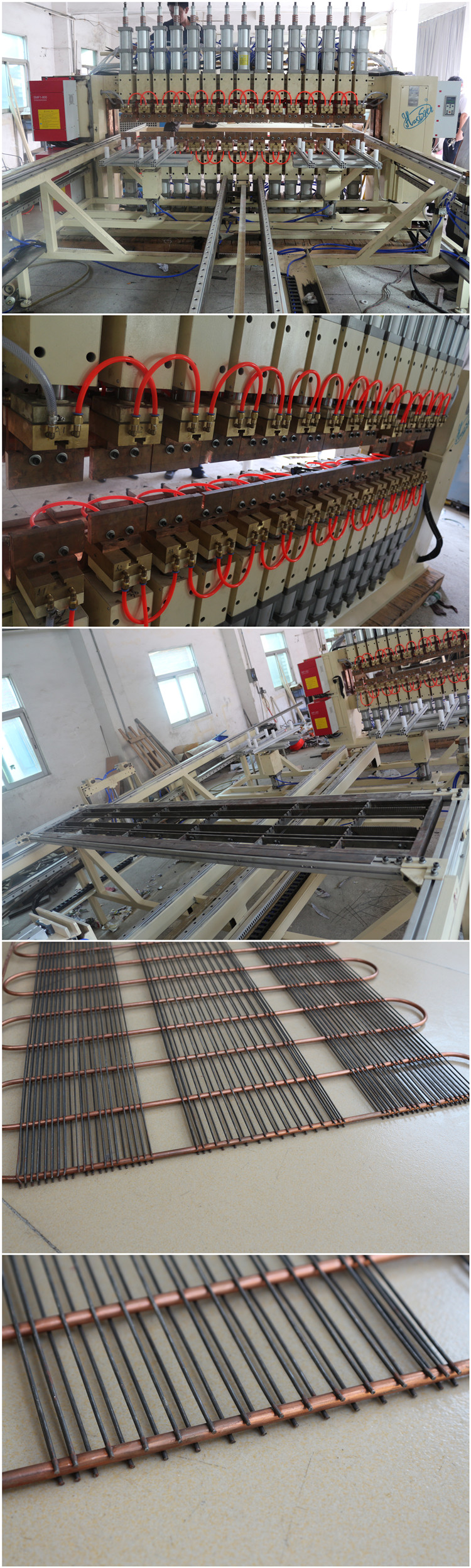

Automatic Wire Welding Machine , Wire And Bundy Tube Condenser Welding Machine Images
|
