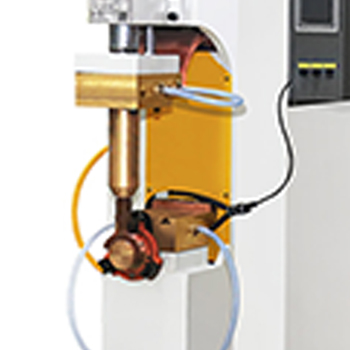

CE Hwashi Spot Projection Welding Machine Pneumatic

Product Categories

Spot Welding Machine [118]
Wire Mesh Welding Machine [296]
Condenser Welding Machine [21]
Sink Welding Machine [64]
Automatic Cage Welding Machine [69]
Industrial Welding Robots [233]
Capacitor Discharge Welding Machine [139]
DC Welding Machine [29]
Automatic Welding Machine [86]
Stainless Steel Welding Machine [74]
Seam Welding Machine [94]
Pneumatic Spot Welding Machine [99]
Butt Welding Machine [75]
MIG Tig Welder [50]
Sheet Metal Welder [113]
Electrical Welding Machine [33]

GUANGDONG HWASHI TECHNOLOGY INC.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

CE Hwashi Spot Projection Welding Machine Pneumatic

Name: CE Hwashi Spot Projection Welding Machine Pneumatic
Brand: HWASHI
Price: 1 USD

Brand Name : HWASHI

Model Number : WL-MF-90K/160K

Certification : CE/CCC/ISO

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 50 sets per month

Delivery Time : 7-30 working days after received your payment

Packaging Details : sea worthy wooden package

Product Name : Hwashi pneumatic Spot Welding Machine Resistance Welding Machine, AC resistance welder/spot welder

Application : welding of copper aluminum steel

Size : 850x900x1850*mm

Weight : 450kg

Condition : New

Warranty : 12 months

Standard : CE/CCC/ISO

Service Life : 8-10 years

Contact Now

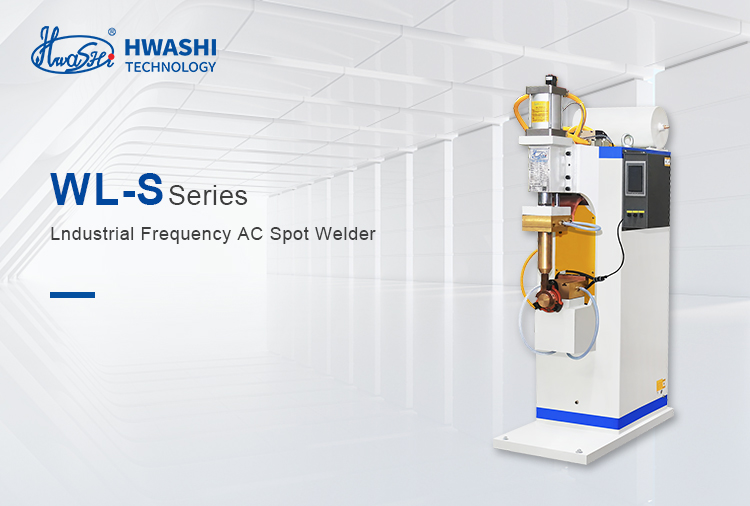

Hwashi pneumatic Spot Welding Machine Resistance Welding Machine, AC resistance welder/spot welder

DETAILED DESCRIPTION

AC pulse spot welding machine utilizes the general mains supply to lower the voltage and increase the electric curent, Such kind of lowvoltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due tothe resistance of work piece, high temperature will occur so the metal wil therefore generate high heat to make the work piecesin molten condition. Thus, the purpose of welding the two work pieces is achieved.

CE Hwashi Spot Projection Welding Machine Pneumatic

Intelligent welding control system

Intelligent Touch Screen Controller
Input and read welding parameters.

Raw materials made to standard

Thicker Copper Plate or Copper Belt
To ensure stable conductivity in welding

CE Hwashi Spot Projection Welding Machine Pneumatic

Custom processing of electrodes

Customized Electrodes which will be suitable for Welding material like steel, aluminium, silver, stainless Steel, and nickel steel.

CE Hwashi Spot Projection Welding Machine Pneumatic

Shape structure and welding method

Design the right machine shape and mold according tothe welding product.

Features of The AC Pulse Spot Welding Machine

Special design integration of pressrized cylinder which can ensure stability and mobility of pressurized and welding speed. Multiple same ways forced water cooling system to ensure stability and reliability of long-term operation. Upper and lower electrode adopt supplementary stroke pressurized mode which can improve the operability of welding process. Pressurized electrode speed can be adjusted, slow down the impact to welding work piece when pressuring, also reduces the noise when welding . Inrease welding stability, It can be used to preheat, to weld, to reform or to temper for special materials, Solve the problems of void welding or loose welding due to current shunt during the process of multiple projection welding .

Specifications

Model	Input Voltage	Input Power	Output Current	Pressurization	Electrode Stroke	Closure	Platform Distance	Electrode Distance
Model	V	KVA	A	kg	mm	mm	mm	mm
WL-S-3K	220	10	5000	200	50	65-115	-	145-165
WL-S-5K	220	10	6000	200	50	65-115	-	145-165
WL-S-10K	220	10	8000	200	50	65-115	-	145-165
WL-S-16K	380	16	10000	300	80	-	-	-
WL-S-25K		25	12000	300	80	-	-	-
WL-S-35K		35	16000	350	80	-	-	-
WL-S-50K		50	19500	500	80	-	-	-
WL-SP-25K		25	12000	300	80	145-225	250	320-420
WL-SP-35K		50	16000	350	80	145-225	250	320-420
WL-SP-50K		50	19500	500	80	145-225	250	320-420
WL-SP-75K		75	24000	1000	100	130-230	260	490-540
WL-SP-100K		100	34000	1000	100	130-230	260	490-540
WL-SP-150K		150	40000	1000	100	130-230	260	490-540
WL-SP-200K		200	50000	1500	100	130-230	260	490-540
WL-P-75K		75	24000	1000	100	130-230	260	-
WL-P-100K		100	34000	1000	100	130-230	260	-
WL-P-150K		150	40000	1000	100	130-230	260	-
WL-P-200K	380	200	50000	1500	100	130-230	260	-
WL-P-300K	380	300	75000	2000	100	130-230	260	-

APPLICATION AND SAMPLES
