Pneumatic Electric Resistance Spot Welding Machine For Storage Cabinets

Brand Name : HWASHI

Model Number : WL-C-15K

Certification : CE/CCC/ISO

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T, D/A

Supply Ability : 50 sets per month

Delivery Time : 7-30 working days after received your payment

Packaging Details : sea worthy wooden package

Product Name : Pneumatic Electric Resistance Spot Welding Machine, Storage Cabinets Spot Welder

Application : Welding for SS304 Cooking Stock Pot Handle

Size : 2200mmX1500mmX1850mm

Weight : 150kg

Condition : New

Warranty : 1 year

Standard : CE/CCC/ISO

Service Life : 8-10 years

After-sales Service Provided : yes

Input voltage : 380V/220v 50HZ

Contact Now

Pneumatic Electric Resistance Spot Welding Machine, Storage Cabinets Spot Welder

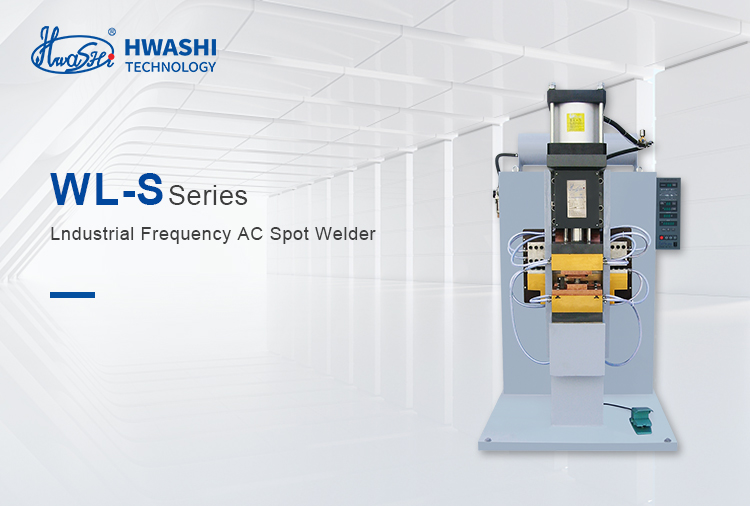

Pneumatic Electric Resistance Spot Welding Machine For Storage Cabinets

Under the operation of transformer, pneumatic AC pulse spot welder utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generates high heat to make the work pieces in molten condition. Thus, the purpose of welding the two work pieces is achieved.

Pneumatic Electric Resistance Spot Welding Machine For Storage Cabinets

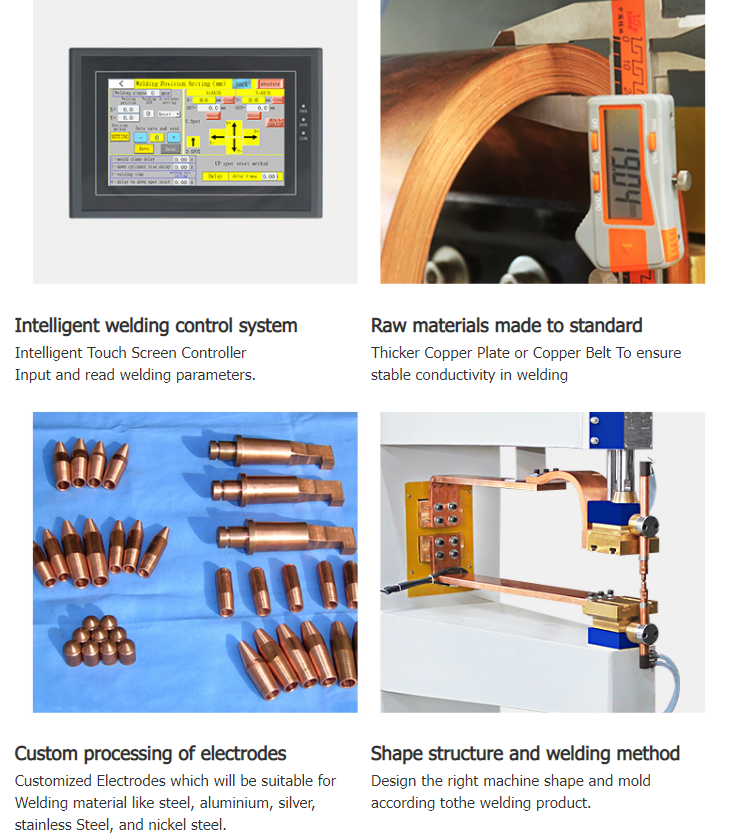

Features of The AC Pulse Spot Welding Machine
Special design integration of pressurized cylinder which can ensure stability and mobility of pressurized and welding speed.
1.Multiple same ways forced water cooling system to ensure stability and reliability of long-term operation.
2.Pressurized electrode speed can be adjusted, slow down the impact to welding work piece when pressuring, also reduces the noise when welding.
3.Upper and lower electrode adopts supplementary stroke pressurized mode which can improve the operation of welding process.
4.Welding Control System: WD-KD5 Intelligent Microcomputer Controller. The AC pulse spot welder that we produce can be matched with many types of welding controllers.
5.Silicon Controlled: Adopt the SEMIKRON, IXYS Silicon controlled from West Germany or IR Silicon controlled from United States;
6.Pneumatic Control System: Adopt large displacement of magnetic valve and gas assembly, sufficient air supply; adopt the quick exhaust cylinder, quick response, good servo performance.
7.Welding Transformer: Adopt high purity silicon steel disc refined welding transformer; Good permeability and electrical conductivity; Less consumption of electricity; Be able to weld the metal plates like 8mm+8mm low-carbon steel.



Model
Voltage
Power
Secondary
Current
Pressurization
Electrode
Stroke
Closure
Platform
Distance

V
KVA
A
Kg
mm
mm
mm
WL-S-3K
220/1
10
5000

 200
50
65-115
-
WL-S-5K
220/1
10
6000
200
50
65-115
-
WL-S-10K
220/1
10
8000
200
50
65-115
-
WL-S-16K
380/1
16
10000
300
80
-
-
WL-S-25K
380/1
25
12000
300
80
-
-
WL-S-35K
380/1
35
16000
350
80
-
-
WL-S-50K
380/1
50
19500
500
80
-
-
WL-SP-25K
380/1
25
12000
300
80
145-225
250
WL-SP-35K
380/1
35
16000
350
80
145-225
250
WL-SP-50K
380/1
50
19500

 500
80
145-225
250
WL-SP-75K
380/1
75
24000
1000
100
130-230
260
WL-SP-100K
380/1
100
34000
1000
100
130-230
260
WL-SP-150K
380/1
150
40000
1000
100
130-230
260
WL-SP-200K
380/1
200
50000
1500
100
130-230
260
WL-P-75K
380/1
75
24000
1000
100
130-230
260
WL-P-100K
380/1
100
34000
1000
100
130-230
260
WL-P-150K
380/1
150
40000
1000
100
130-230
260
WL-P-300K
380/1
300
75000
2000
100
130-230
260



Pneumatic Electric Resistance Spot Welding Machine For Storage CabinetsPneumatic Electric Resistance Spot Welding Machine For Storage Cabinets
