XY Axis Wire Welding Machine With Automatic Wire Loading Hopper

Name: XY Axis Wire Welding Machine With Automatic Wire Loading Hopper
Brand: HWASHI
Price: 1 USD

Brand Name : HWASHI

Model Number : WL-SQ-150Kx2

Certification : CE/CCC/ISO

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T, D/P

Supply Ability : 50 sets per month

Delivery Time : 7-30 working days after received your payment

Packaging Details : sea worthy wooden package

Product Name : HWASHI XY axis Single Head automatic wire mesh welding machine with automatic wire loading hopper

Condition : New

Application : wire mesh welding

X Axis Effective Width : 1000mm

Y Axis Effective Width : 1000mm

Feeder Moving Speed : 0.5m/sec

Warranty : 1 Year

Standard : CE/CCC/ISO

Service Life : 8-10 years

Size : 1600x1380x1850mm

Weight : 600kg

Contact Now

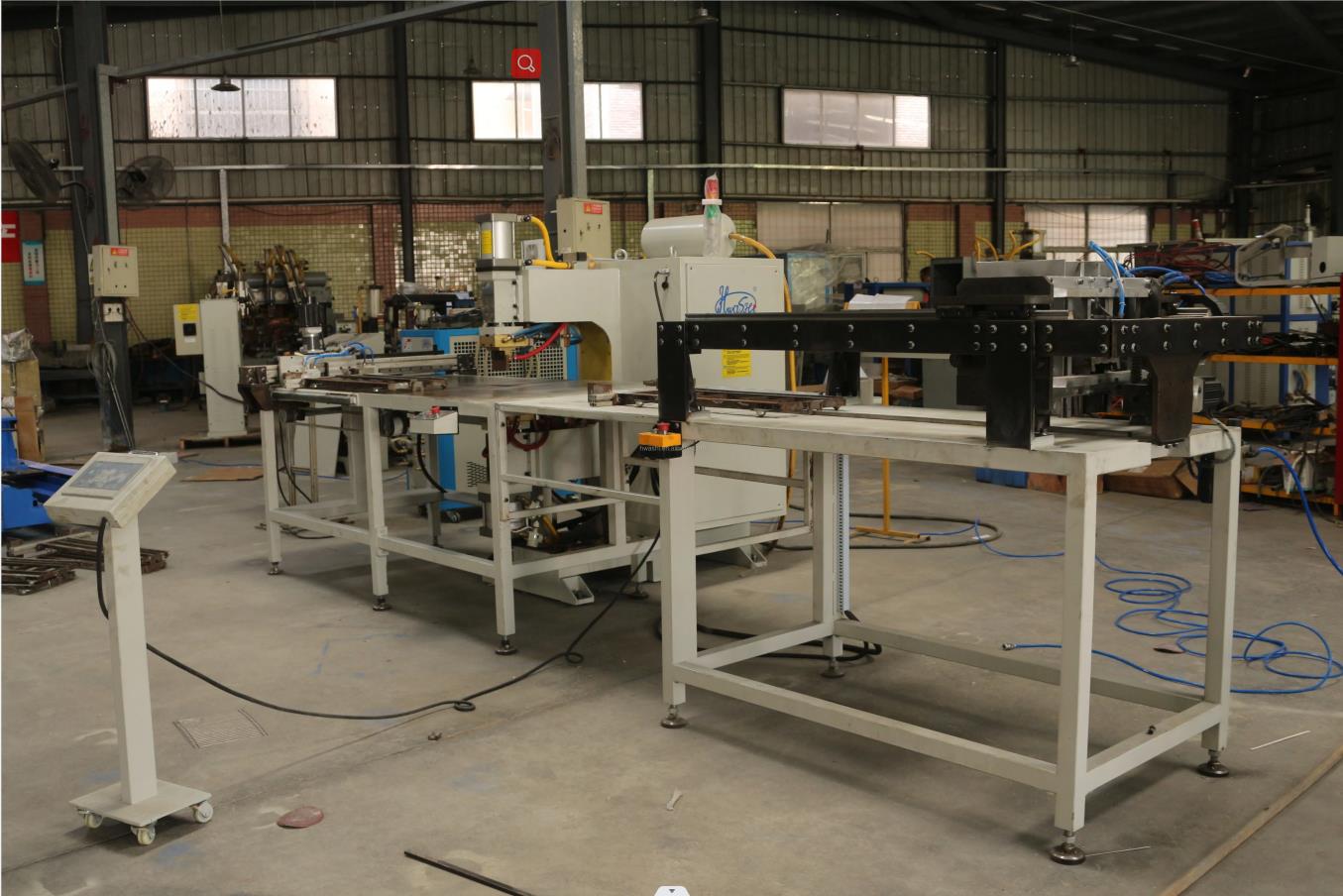

XY Axis Wire Welding Machine With Automatic Wire Loading Hopper

HWASHI XY axis Single Head automatic wire mesh welding machine with automatic wire loading hopper

Main Features

According to the specification provided by our customer, we adopt the design of single-electrode X, Y axis automatic mobile type welding machine which can be matched with different welding fixtures. The operator only needs to input the parameters like the coordinate data and welding current, then the machine will conduct automatic welding after start. Workers only need to put and take the work piece manually. This machine is of simple structure which will make the assembly very easy. It also can be matched with different welding equipment. The servo motor will drive the X and Y axis to run within the preset PLC programming. It can max store 5000 welding spots. This machine is suitable for batch welding of wire mesh. The AC pulsed power supply is of low cost and low consumption which can help reduce the impact to the power grid and ensure the stability of the welding spot.
Specially , we add one automatic wire loading hopper to this machine


Technical Data:

No	Item	Parameter
1	Welding power	AC 150K
2	Input voltage	Two phase 380V±10% 50Hz
3	Rated power	150KVA
4	Rated switch	150KVA
5	Duty cycle	50%
6	Frequency	50HZ
7	Heat adjustable range	15%~99%
8	Welding model	16kinds
9	Output way	AC
10	Max output current	AC12V
11	Control system	Panasonic PLC
12	Effective welding width	1000mm (customized)
13	Effective welding length	1000mm(customized)
14	Automatic moving speed	500-1000mm/min adjustable
15	Welding cylinder	Ø80x100mm
