MIG TIG Laser Welding Robot With Railway And Positioner

Name: MIG TIG Laser Welding Robot With Railway And Positioner
Brand: HWASHI
Price: 1 USD

Buy cheap MIG TIG Laser Welding Robot With Railway And Positioner product

Brand Name : HWASHI

Model Number : HS-RS-08~165

Certification : CE/CCC/ISO

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 50 sets per month

Delivery Time : 7-30 working days after received your payment

Packaging Details : sea worthy wooden package

Product Name : Automatic Robotic MIG TIG Laser Welding Robot Arm Machine Price

Application : Welding for Steel ,aluminum , GI and so on

Size : 600x1300x1700mm

Weight : 200kg

Condition : New

Warranty : 12 months

Standard : CE/CCC/ISO

Service Life : 8-10 years

Contact Now

Automatic Robotic MIG TIG Laser Welding Robot Arm Machine Price With Railway and Positioner

DESCRIPTION

Welding system: Panasonic MIG or TIG welding machine with automatic wire feeding system, laser welding machine and resistance spot welding machine. Stable performance.
Automatic alarm system: if any problem on the wire feeding or gas supply and so on, the welding robot will alarm and the welding will stop until you clear the alarm.
Welding gun system: famous brand TBI welding gun.
Welding gun cleaning and wire cutting system: TBI brand.
Working station positioner: It is designed with two sets of working table. Single table could achieve 360° rotation which is suitable for multi-angle welding. Two sets of positioner system could achieve 180°rotation through spindle motor. It could achieve alternative use so as to increase efficiency.
Work piece clamping system: the cylinders will push and clamp the work piece. Balanced and stable clamping force.
Arc light baffle: cylinder pushes automatic rotation. Use for preventing light pollution during working process.
Start control panel system: Manual/Automatic button platform with portable structure. Convenient for operation.

MAIN FEATURES:

According to the product requirement, the machine will be designed as follows:
Positioner, manual loading;
Cylinder for clamping the product;
automatic positioner to turn over the fixture;
Robot automatic welding;
Manual unloading the product;
Welding gun cleaner device

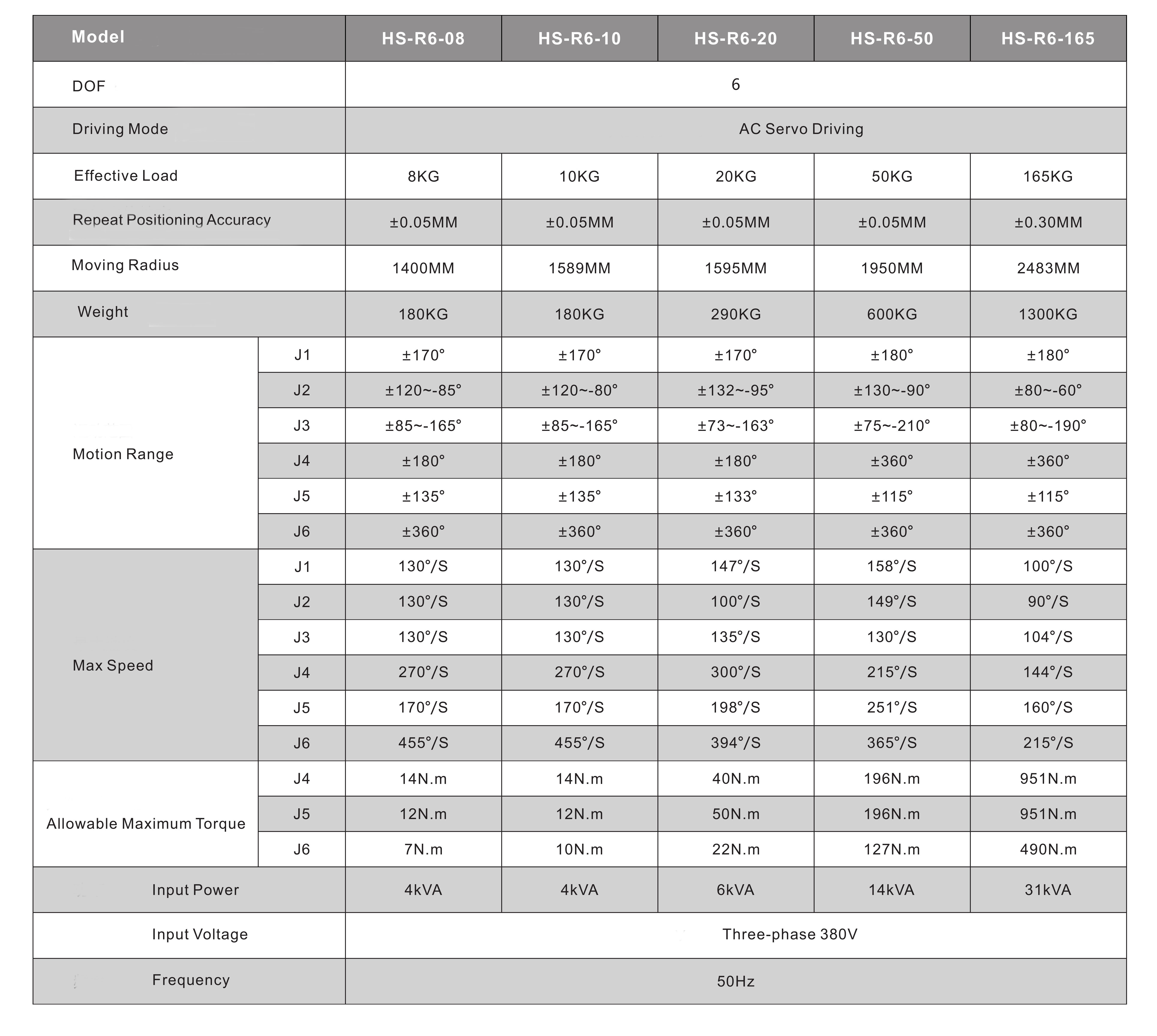

SPECIFICATION

MIG TIG Laser Welding Robot With Railway And Positioner

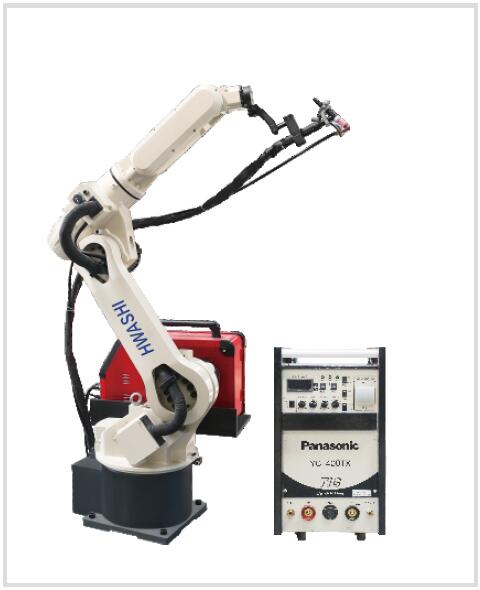

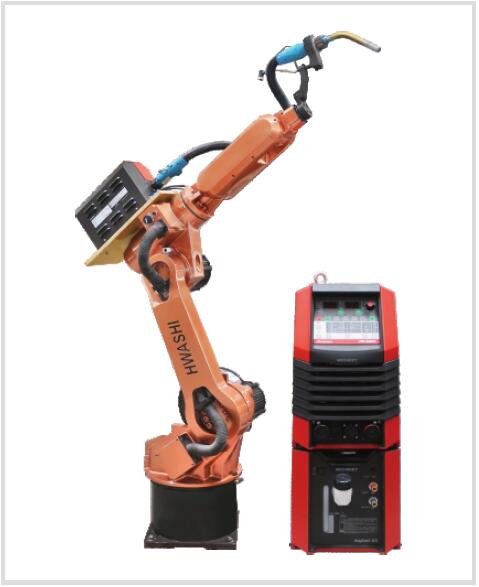

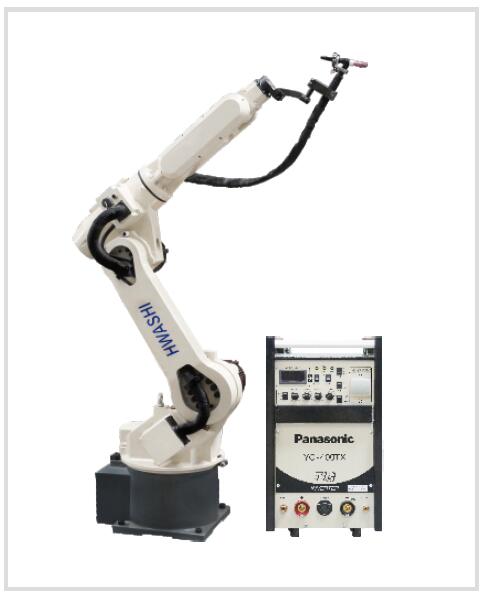

TIG Welding Robot	TIG Welding Robot with wire filling device	MIG Welding Robot

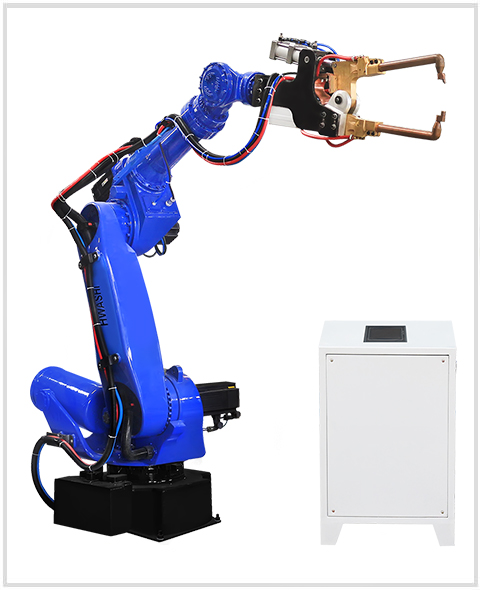

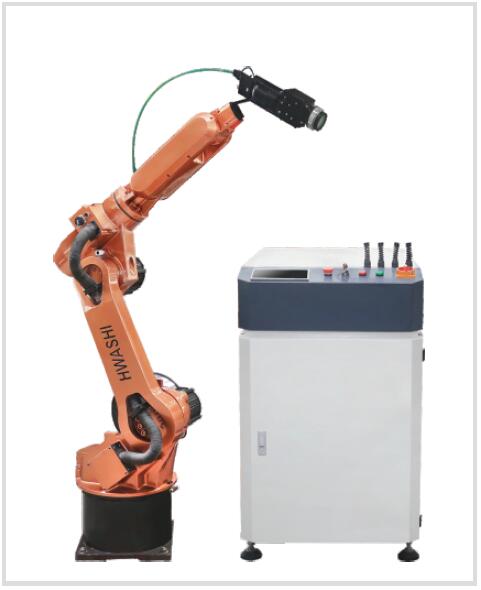

Aluminum Welding Robot	Spot Welding Robot	Laser Welding Robot

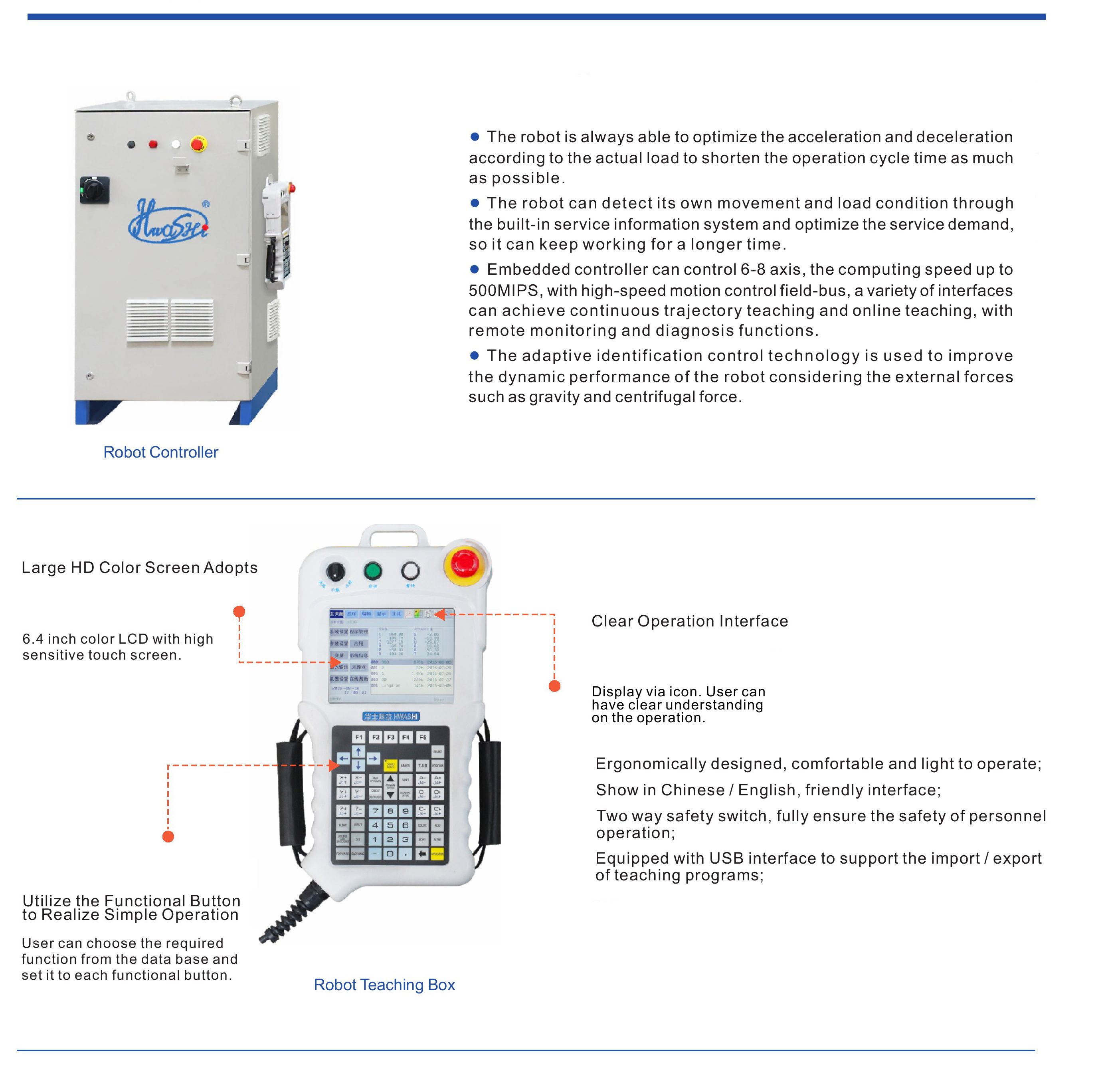

WELDING ROBOT CONTROLLER AND TEACHING PENDANT

MIG TIG Laser Welding Robot With Railway And Positioner

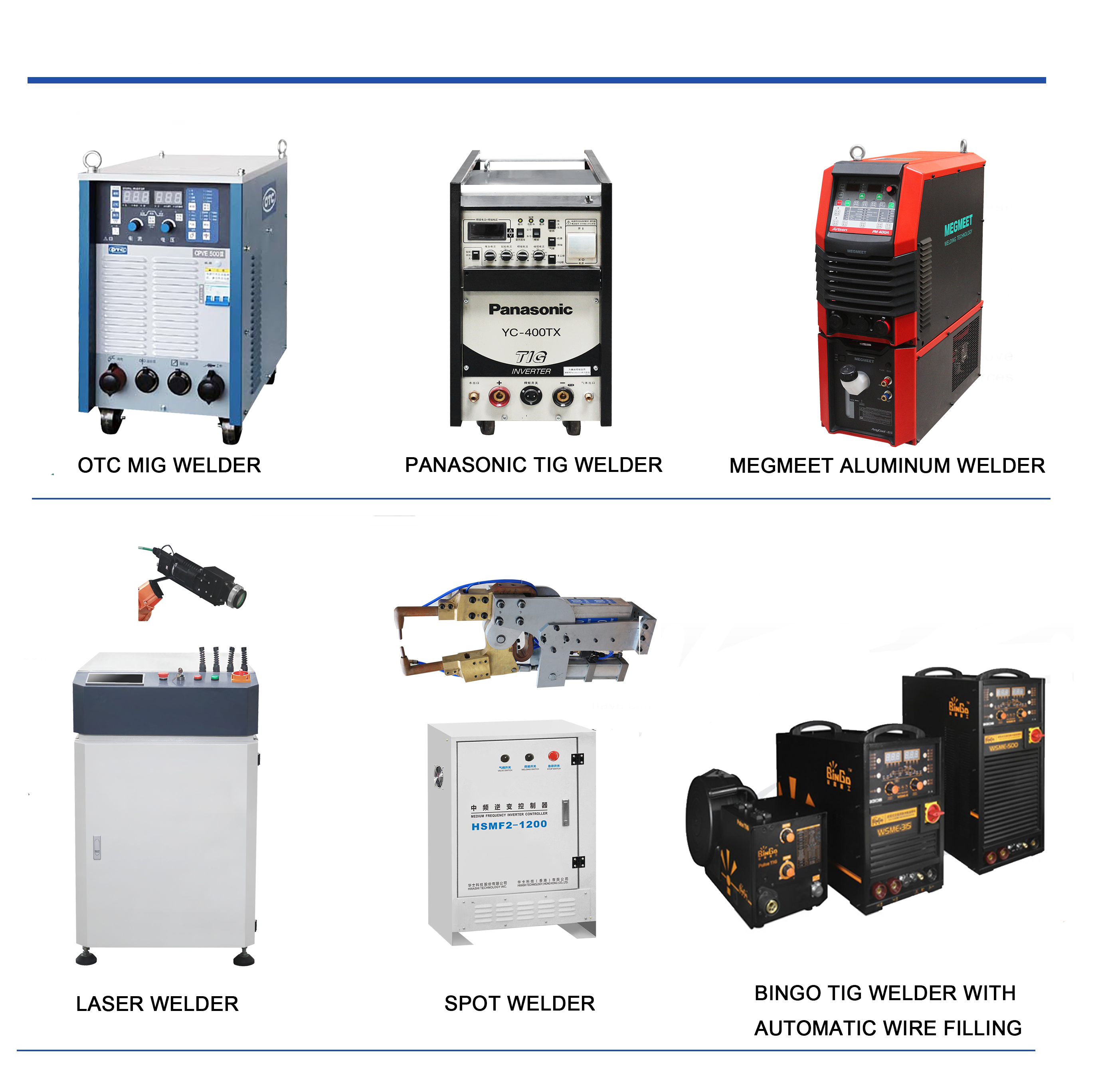

WELDING POWER FOR OPTIONS

MIG TIG Laser Welding Robot With Railway And Positioner

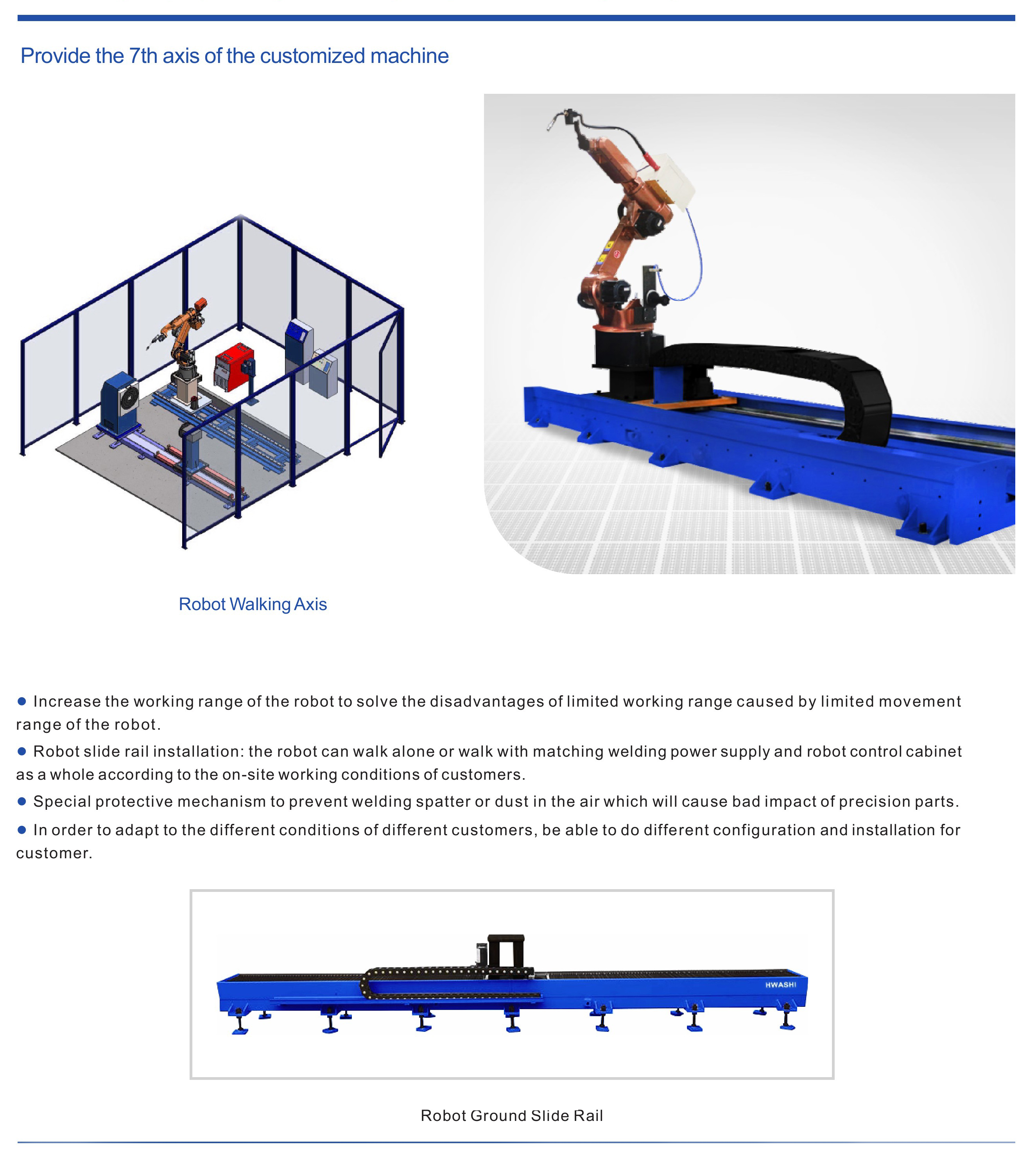

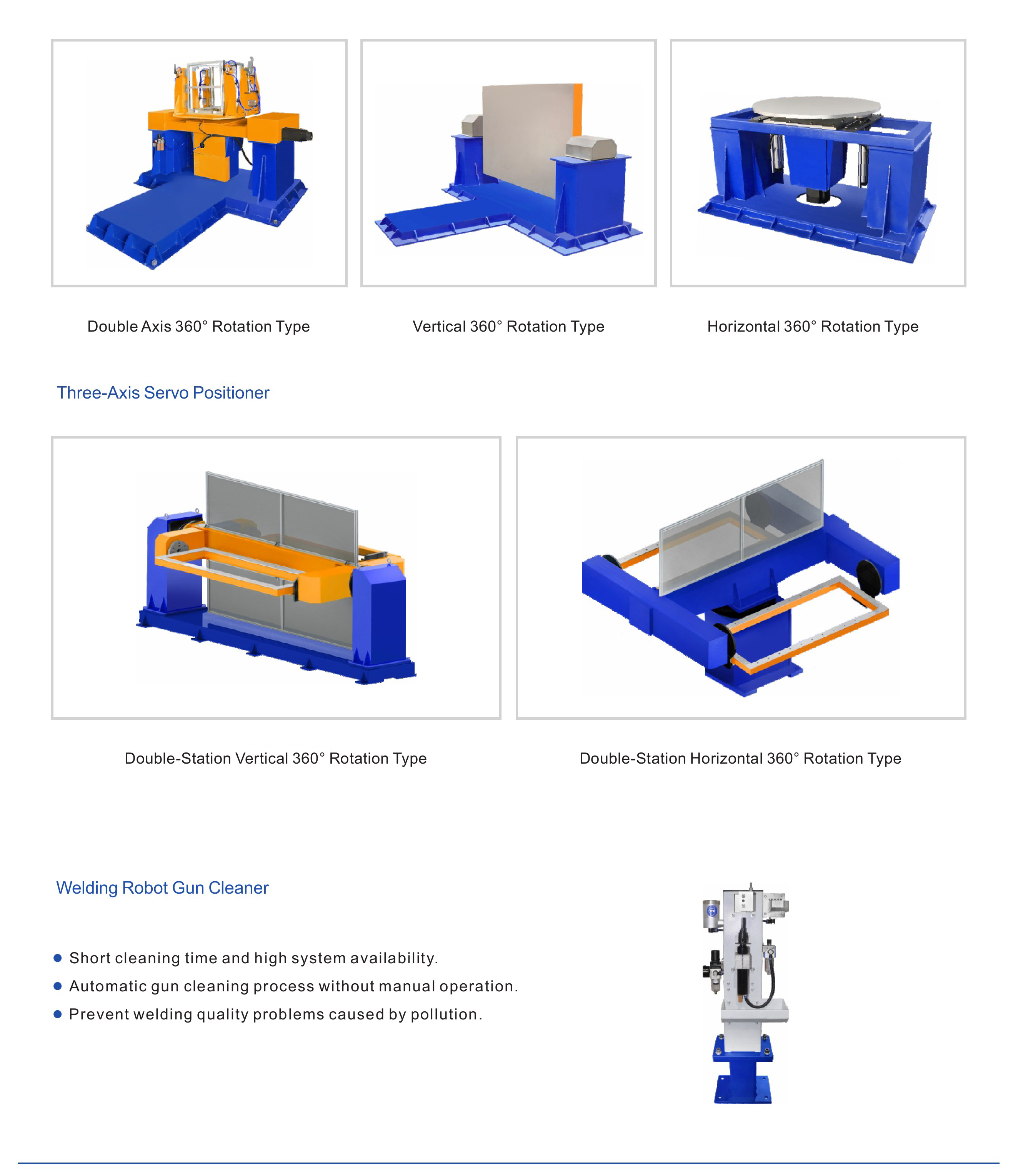

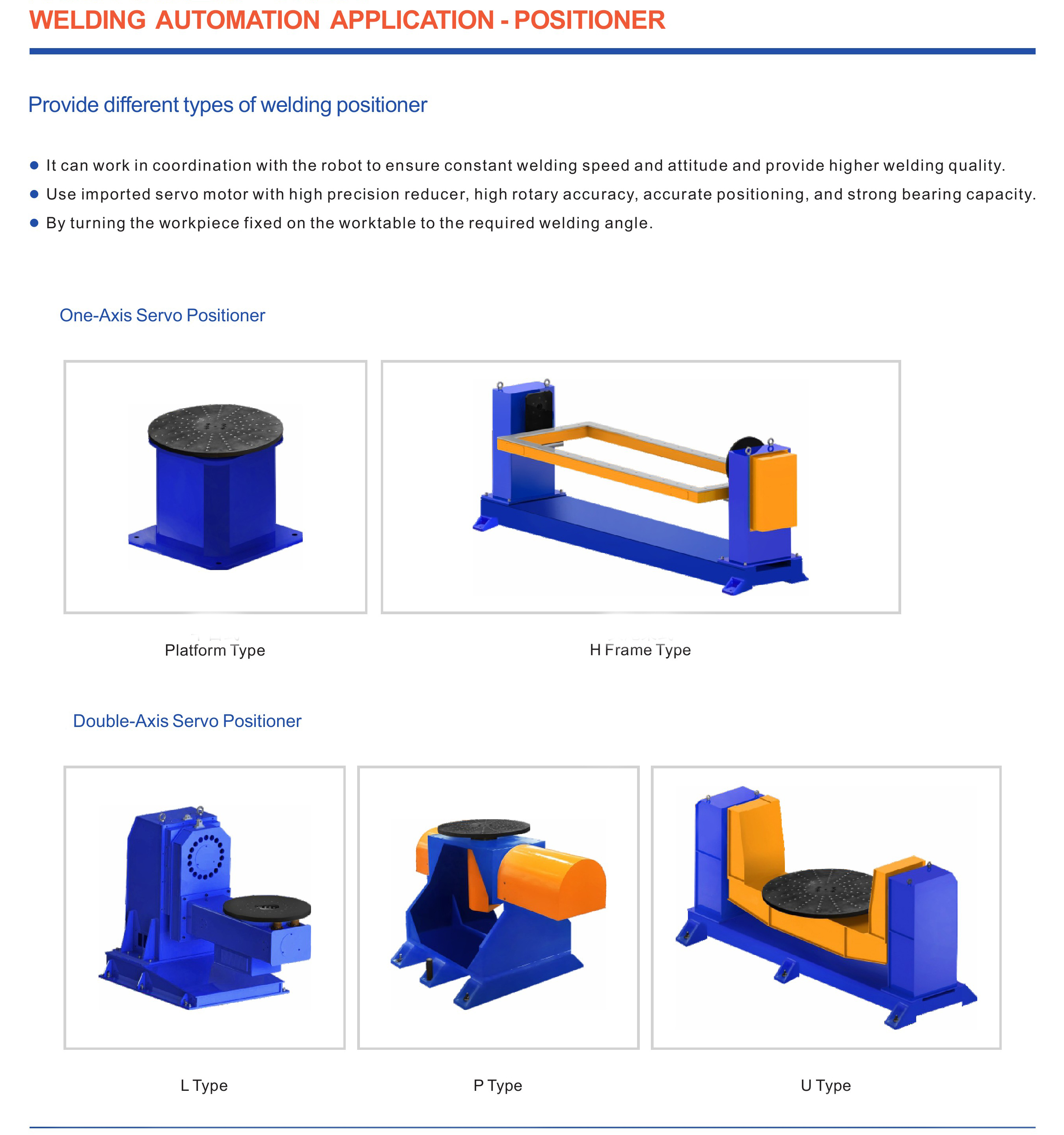

POSITIONER AND RAILWAY

MIG TIG Laser Welding Robot With Railway And Positioner

MIG TIG Laser Welding Robot With Railway And Positioner

APPLICATION
Applied to loading and unloading, welding, stacking transportation, gelatinization and spraying industry.

COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
