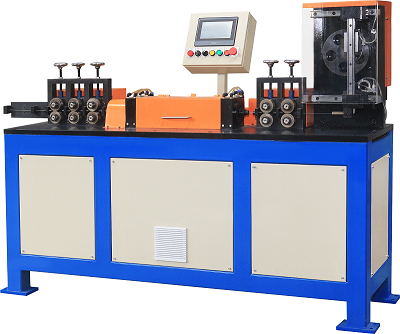

HWASHI High Speed Automatic Wire Straightening Machine,Wire Cutting Machine
DESTRIPTION
1. This machine is suitable for wire, stainless steel wire, galvanized wire, aluminum, water (powder) draw lines and other metal wire straightening and cutting.
2. Sending wire wheel, such as the use of high-quality steel cutter and vacuum heat treatment, wear resistance, longer life. Straightening block can be cast iron, alloys, plastics Wang, all shaft parts are all 40CR or 45 # steel, and after straightening process, the gear is used in all forging billet, straight and tooth surface by high frequency hardening, hardness up HRC55-58 degrees.
3, straight shaft with high pressure wheel straight before cutting the wire straightening, wire feeding pressing the pinch roller lever to adjust wire feed, the wire can even feed, direct modulation axis is the key product formed by direct modulation straightening blocks and tone straight shaft fixed to adjust the horizontal and vertical products to conform to requirements. Adjusting the pressing handle, the wire and the wire is more horizontal and vertical production rate increase or decrease. Finally, adjust white blades gun on the length of the product to meet the requirements.
APPLICATION
Suitable for straightening and cutting different size of wire.
Configuration
| No. | Items | Brand |
| 1 | Machine Main Body | HWASHI professional welding, post weld stress relief treatment |
| 2 | Painting | Sand blasting treatment, surface spray powder, color can be customized. |
| 3 | PLC | DELTA |
| 4 | Servo Motor | TECO |
| 5 | Touch Screen | KINCO |
| 6 | Encoder | Omron |
| 7 | Low Voltage Apparatus | Schneider |
Technical Parameters:
| No. | Items | Parameters |
| 1 | Machine Model | KW-150 |
| 2 | Suitable Material | carbon steel wire |
| 3 | Wire Diameter | Φ1.1-Φ1.5mm (cannot do more than 1.5mm) |
| 4 | Length Range | 100mm~50000mm |
| 5 | Cutting Speed | Max. 350pcs/min |
| 6 | Wire Straightening Speed | 150m/min |
| 7 | Cutting Precision | ±0.5mm (except for accelerate and decelerate) |
| 8 | Control System | Touch screen operation, frequency control of motor speed |
| 9 | Running Mode | Automatic |
| 10 | Input Power | 380V 3-phase 50Hz |
| 11 | Holding Tray | 2.2 meters |
| 12 | Cutting Method | Cutting Blade Material: Cr12 |
| 13 | Covering Space | 10x1m |
COMPETITIVE ADVANTAGE
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO 9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
